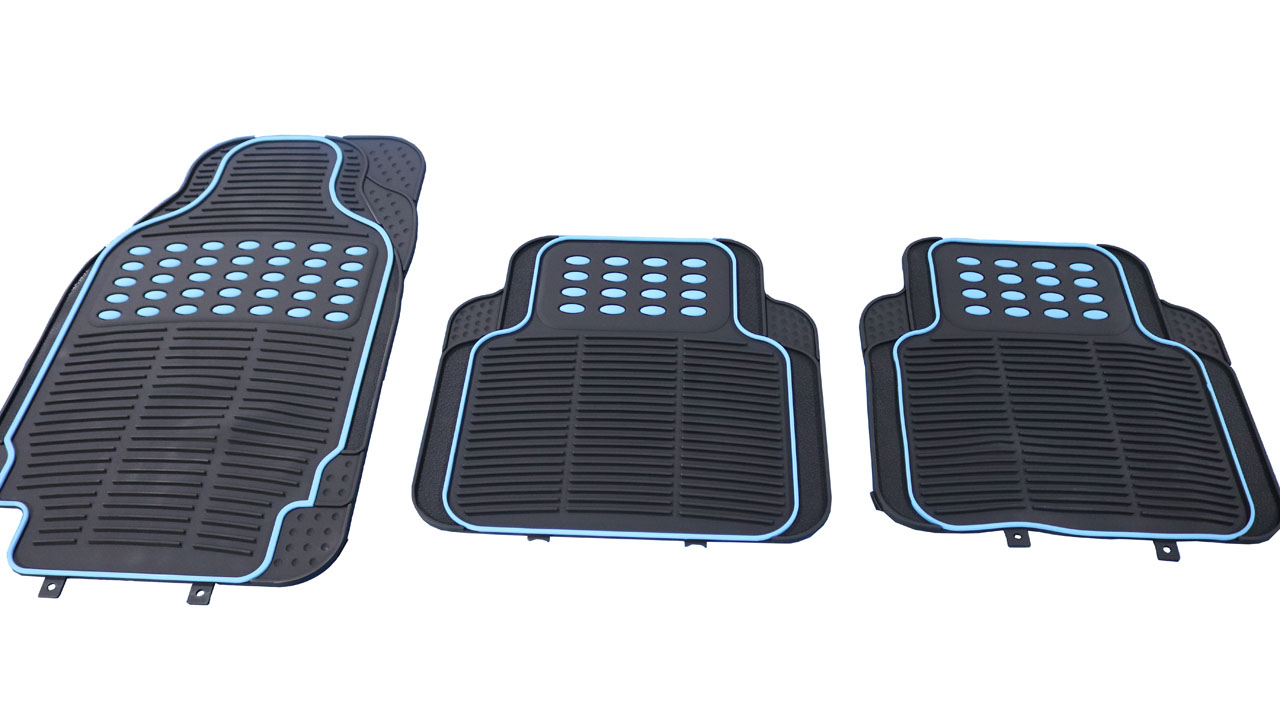

With the rapid development of the global automotive industry and the growing demand for personalized, durable and eco-friendly automotive interior accessories, PVC rubber car floor mats have become one of the most essential aftermarket automotive products. Featuring excellent wear resistance, waterproof performance, anti-slip properties and customizable appearances, PVC rubber floor mats are widely adopted in passenger cars, commercial vehicles and new energy vehicles. To meet the massive market demand and standardized product requirements, the automatic PVC rubber car floor mat production line has emerged as a core intelligent manufacturing solution for the automotive interior industry. This fully integrated production system realizes automated, high-precision and high-efficiency mass production, effectively solving the problems of low manual production efficiency, inconsistent product quality and high labor costs.
1. Overview of the Automatic Production Line
The automatic PVC rubber car floor mat production line is a turnkey intelligent manufacturing system that integrates raw material processing, precision molding, thermal curing, and cooling shaping. Different from traditional semi-automatic and manual production modes, this production line achieves full-process automated operation from PVC and rubber compound feeding to final product finished. Equipped with autoamtic dispensing control systems, multi-zone heat systems and precision dispensing and molding modules, it supports customized production of floor mats in different sizes, thicknesses, colors and patterns, covering mainstream models of various vehicle types.
Most advanced production lines adopt a modular integrated design, with a high automation rate of over 90%. The entire production process only requires 2 to 3 workers per shift for auxiliary operations such as mold placement and finished product inspection, which greatly reduces labor dependence. In addition, the equipment supports continuous 24-hour stable operation, with an adjustable production speed of 8-12 meters per minute, realizing large-scale and standardized output of PVC rubber car floor mats.
2. Core Composition and Technical Features
A complete automatic PVC rubber car floor mat production line consists of multiple core functional modules, each with independent precision control systems to ensure coordinated and efficient operation. The core components and their technical advantages are as follows:
2.1 Raw Material Mixing and Extrusion System
This module is the core of raw material pretreatment, responsible for melting, mixing and plasticizing PVC particles, rubber materials and environmentally friendly additives. The high-precision extrusion system adopts energy-saving servo motors and multi-stage heating barrels, which can evenly melt raw materials and ensure consistent material viscosity. It supports adjustable product thickness ranging from 2mm to 10mm, and can complete parameter adjustment and pattern replacement within 30 minutes, realizing rapid switching of different product specifications. Meanwhile, the system meets GB/T 27630 environmental protection standards, producing low-odor, non-toxic raw materials that comply with global automotive interior environmental protection requirements.
2.2 Precision Dispensing and Coloring System
Equipped with 6 sets of high-precision automatic dripping systems and 2 sets of automatic base color filling systems, the production line supports simultaneous processing of up to 12 colors. The intelligent dispensing system realizes quantitative and fixed-point glue output through computer programming, effectively avoiding color deviation and material waste. It can accurately restore complex anti-slip textures, brand patterns and personalized color matching on the surface of floor mats, ensuring high uniformity of product appearance and improving the aesthetic and decorative value of the products.
2.3 Intelligent Constant Temperature Curing System
The production line is fitted with a new energy-saving heating system and a multi-zone PID intelligent temperature control oven, with a temperature control accuracy of ±2°C. The segmented temperature setting adapts to the curing requirements of different PVC and rubber materials, ensuring full and uniform thermal curing of floor mats without deformation, bubbling or cracking. Compared with traditional heating equipment, the optimized heating structure reduces energy consumption by 15%, achieving energy-saving and environmentally friendly production while guaranteeing molding quality.
2.4 Efficient Cooling and Shaping System
Matching the curing process is an innovative non-submersible cooling system, which avoids product damage and water stain residues caused by traditional water cooling. The dual sets of circulating air cooling modules realize rapid and uniform cooling of high-temperature semi-finished floor mats, quickly fix the product shape,
2.5 Intelligent Conveying and Auxiliary System

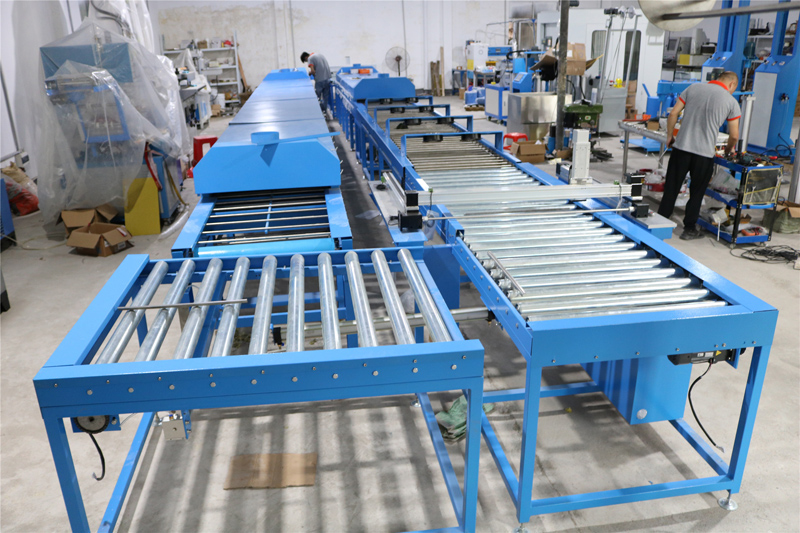

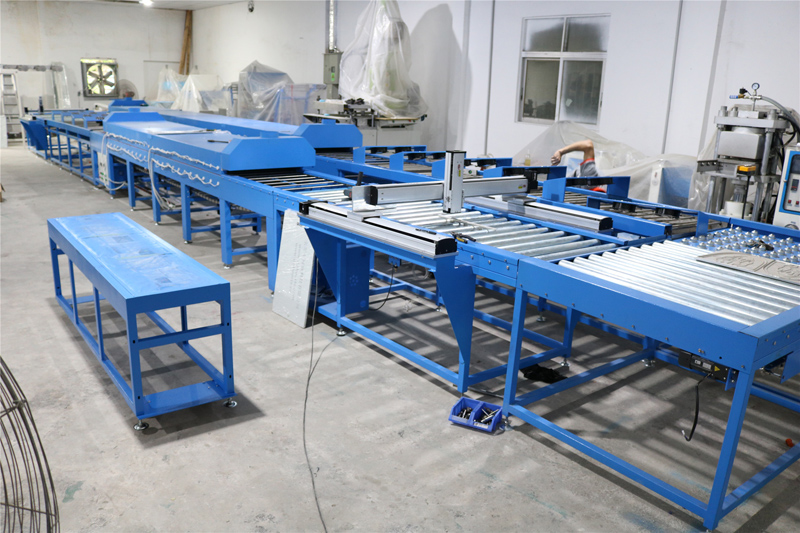

The full-line automatic mold backing conveyor realizes seamless connection of each production process, eliminating manual handling links. The whole process is controlled by a microcomputer, with automatic mold identification, parameter memory, fault alarm and counting statistics functions. Ordinary workers can master the operation after short-term training, realizing intelligent and simplified equipment management.
3. Complete Production Workflow
The automatic PVC rubber car floor mat production line realizes one-stop production from raw materials to finished products, with a standardized and streamlined workflow as follows:
Step 1: Raw Material Preparation and Mixing — Qualified PVC particles, rubber raw materials and environmental additives are proportioned and put into the feeding system. The automatic mixer fully stirs and plasticizes the materials to form uniform molten composite materials.
Step 2: Extrusion and Preliminary Molding — The molten materials are extruded into uniform sheet structures through the precision extrusion die, and preliminary shaping is completed according to the set thickness and width parameters.
Step 3: Precision Dispensing and Pattern Forming — The automatic dispensing system quantitatively fills colors and patterns on the surface of the molded sheet according to the programmed design scheme, completing personalized pattern production.
Step 4: Thermal Curing and Plasticization — The semi-finished products enter the intelligent constant temperature oven for segmented curing, which solidifies the material structure and enhances the toughness and wear resistance of the floor mats.
Step 5: Rapid Cooling and Shaping — The cured products are sent to the air cooling system for rapid cooling and shaping to stabilize the product size and appearance.
4. Core Industrial Advantages
4.1 Stable and Superior Product Quality
Relying on full-process automated precision control, the production line avoids product differences caused by manual operation errors. The produced PVC rubber floor mats have uniform thickness, clear patterns, stable anti-slip and waterproof performance, and pass 50,000+ times of wear resistance tests. The products feature strong weather resistance, not easy to deform, fade or age, and can adapt to complex vehicle interior use environments.
4.2 High Production Efficiency and Cost Savings
The high-speed continuous production mode greatly improves output capacity, with the daily output reaching thousands of pieces. The high automation level reduces 3-4 on-site operators, significantly cutting labor costs. Meanwhile, the precise material proportioning and dispensing system reduces raw material waste, and the energy-saving heating and driving system lowers long-term production energy consumption, bringing significant cost advantages for manufacturers.
4.3 Strong Production Flexibility
The modular design and intelligent parameter adjustment system support rapid switching of products for different vehicle models, from ordinary family cars to commercial vehicles and new energy vehicles. It can meet personalized customization needs such as different colors, patterns, thicknesses and functional designs, realizing flexible production of multiple varieties and small batches while supporting large-scale mass production.
4.4 Safe and Eco-Friendly Production
The whole production process adopts closed-loop processing, with no waste water and waste gas pollution. The selected raw materials and production processes meet international automotive environmental protection standards. The equipment is equipped with multiple safety protection devices such as overload protection and emergency stop, ensuring safe and standardized production operations.
5. Application and Development Trends
At present, automatic PVC rubber car floor mat production lines have been widely used in automotive interior accessory factories at home and abroad, covering the supporting production of complete vehicles and after-market modification and replacement markets. With the booming development of the global new energy vehicle industry and the continuous improvement of consumers’ requirements for automotive interior comfort and aesthetics, the market demand for high-quality, personalized and environmentally friendly PVC rubber floor mats continues to grow.
In the future, the production line will develop towards higher intelligence, digitalization and greening. Combined with AI intelligent detection, IoT data monitoring and fully automatic packaging technology, it will realize unmanned full-process production. At the same time, with the upgrading of environmental protection policies, the production line will further optimize energy-saving structures and adopt more environmentally friendly modified PVC and rubber materials to produce low-carbon and recyclable automotive interior products, continuously empowering the high-quality development of the automotive accessory manufacturing industry.
The automatic PVC rubber car floor mat production line is an indispensable intelligent manufacturing equipment in the modern automotive interior industry. It perfectly solves the pain points of traditional production such as low efficiency, unstable quality and high cost through full-process automation, precision control and flexible production capabilities. With its advantages of high efficiency, high precision, energy saving and environmental protection, and strong customization, it not only helps manufacturing enterprises improve production capacity and product competitiveness, but also promotes the standardized and intelligent upgrading of the entire car floor mat manufacturing industry. As the automotive market continues to iterate and upgrade, this automated production line will become the mainstream production solution for the global automotive floor mat manufacturing field.
