Automatic elastic tape cabinet type silicone coating machine

Short Description:

Automatic cabinet type silicone coating machine can be used in one component silicone and two component silicone coating machine,suitable to braided belt,elastic tape,narrow fabric to coating silicone dot type,line type,wave type,strip type,rhombus type,and rectangle type etc.

Model: DH-CM11

Belt Max. width: 80mm

Power: AC/380V

Speed: 1-20 meters/min

Send email to us

Product Detail

FAQ

Product Tags

Description

Automatic cabinet type silicone coating machine is a coating machine that sprays liquid silicone directly on the elastic tape from the mold opening by using high pressure. Equipped with a fully automatic glue supply system, it is easy to operate and has high production efficiency. With PLC control, stable performance. Install automatic tape feeding system, tape conveying system and automatic baking system which make the silicone machine can simultaneously production of 1 or 2 tapes. It can coat straight lines, waves, dots, letters, rectangles, rhombuses and honeycombs, etc. In addition, the cabinet silicone coating machine is equipped with a color adding system, which can coat different colors of silicone on the tapes.

Features

1. Can produce two ribbons at the same time

2. Available to choose one part pump or two part pump

3. Can coat dot type and letter on the tapes

4. Suitable different material narrow tapes

5.Can coat different colors

Specification

Max speed of tape-walking	20m/min
Max.tape width	80mm
Oven dimension	216020002130mm
Oven temperature	0-150℃
Weight	1165kg
Air requirement	0.2-0.5Mpa
Power	8kw

Application

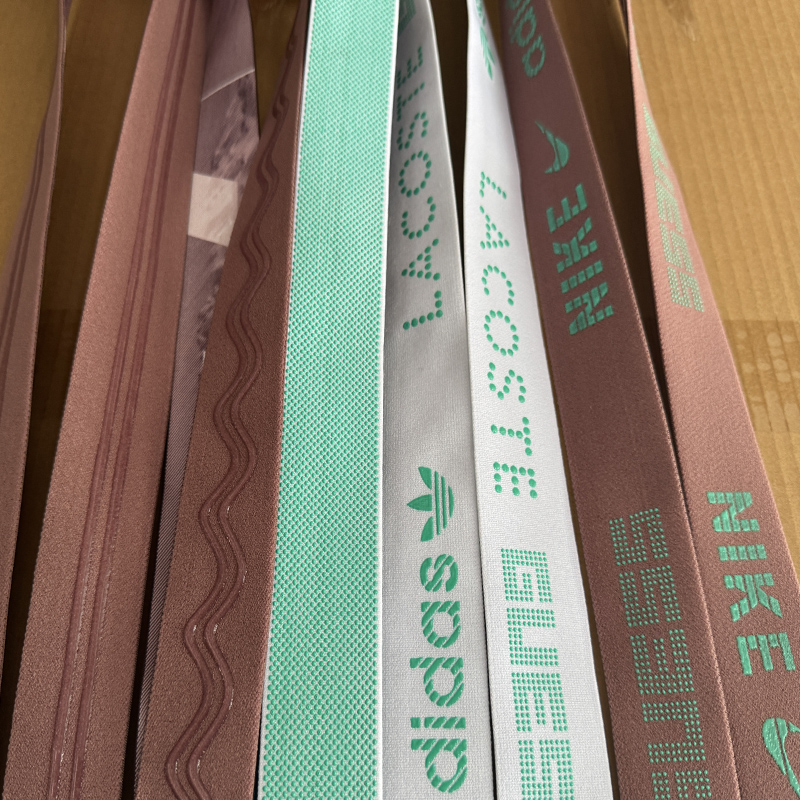

Automatic cabinet type silicone coating machine can be used for elastic tapes, elastic band, webbing, elastic belts, nylon belts, PP belts, PE belts, underwear shoulder straps, sports pants cuffs, sports clothes cuffs, trouser waists, shoelaces, dog belts, ribbon, woven tape, textile belt, narrow fabrics,etc.
